SENSING是高质量摄像机的领先供应商。作为NVIDIA Elite Jetson合作伙伴,我们支持NVIDIA Jetson平台及其家族最新成员Jetson AGX Orin我们提供创新的摄像机解决方案,如高分辨率SerDes摄像机、超微光摄像机、红外摄像机、HDR摄像机以及ADAS摄像机。我们针对NVIDIA Jetson的GMSL2和MIPI CSI-2摄像机应用于自主机器、工业检测、机器人和边缘计算。


我们有能力开发成像解决方案,使用NVIDIA Jetson相机工具链来满足各种相机系统的需求。特别适用于高图像质量、低照度成像和低延迟传输解决方案。该解决方案包括具有各种接口的摄像头,如MIPI、GMSL、FPDLINK、USB等。我们还提供Linux驱动程序和示例应用程序,以实现快速的集成。

Product

Image Sensor

Sensor Type

Interface

Resolution

Output Format

SG5-OX05BIR-4000-GMSL2-H140M

OX05B1S

RGBIR/Global

GMSL2

5MP

YUV422

SG2-IMX390C-GMSL2-H120H

IMX390

Rolling Shutter

GMSL2

2MP

RAW12

SG2-AR0233C-GMSL2-H120H

AR0233

Rolling Shutter

GMSL2

2MP

RAW12

SG2-AR0233C-5200-GMSL2-Hxxx

AR0233AT

Rolling Shutter

GMSL2

2MP

RAW12

SG2-OX03CC-5200-GMSL2F-Hxxx

OX03C10

Rolling Shutter

GMSL2

2MP

RAW12

SG2-IMX390C-5200-GMSL2-Hxxx

IMX390

Rolling Shutter

GMSL2

2MP

RAW12

SG3-ISX031C-GMSL2-Hxxx

ISX031

Rolling Shutter

GMSL2

3MP

RAW12

SG5-IMX490C-5300-GMSL2-Hxxx

IMX490

Rolling Shutter

GMSL2

5MP

RAW12

SG5-IMX490C-GMSL2-Hxxx

IMX490

Rolling Shutter

GMSL2

5MP

RAW12

SG8-IMX728C-GMSL2-Hxxx

IMX728

Rolling Shutter

GMSL2

8MP

RAW12

SG8-AR0820C-5300-GMSL2-Hxxx

AR0820AT

Rolling Shutter

GMSL2

8MP

RAW12

SG8-OX08BC-5300-GMSL2-Hxxx

OX08B40

Rolling Shutter

GMSL2

8MP

RAW12

SG1-AR0147C-0101-FPDLink-Hxxx

AR0147

Rolling Shutter

FPD-Link III

1MP

YUV422

SG1-OX01FC-FPDLink-Hxxx

OX01F10

Rolling Shutter

FPD-Link III

1MP

YUV422

SG2-AR0233C-5200-FPDLink-Hxxx

AR0233AT

Rolling Shutter

FPD-Link III

2MP

YUV422

SG2-IMX390C-5200-FPDLink-Hxxx

IMX390

Rolling Shutter

FPD-Link III

2MP

YUV422

SG2-AR0231C-0202-FPDLink-Hxxx

AR0231

Rolling Shutter

FPD-Link III

2MP

YUV422

SG2-AR0233C-5200-FPDLink-Hxxx

AR0233

Rolling Shutter

FPD-Link III

2MP

YUV422

SG2-OX03CC-TH241-HXXX

OX03C10

Rolling Shutter

V-by-One HS

2MP

RAW12

SG8-IMX334M-TH241-HXXX

IMX334

Rolling Shutter

V-by-One HS

8MP

RAW12

SG2-IMX390C-MIPI

IMX390

Rolling Shutter

CSI/MIPI

2MP

RAW12

SG8-IMX334M-Hxxx

IMX334

Rolling Shutter

CSI/MIPI

8MP

RAW12

SG12-IMX577-Hxxx

IMX577

Rolling Shutter

CSI/MIPI

12MP

RAW12

SG12-IMX477-Hxxx

IMX477

Rolling Shutter

CSI/MIPI

12MP

RAW12

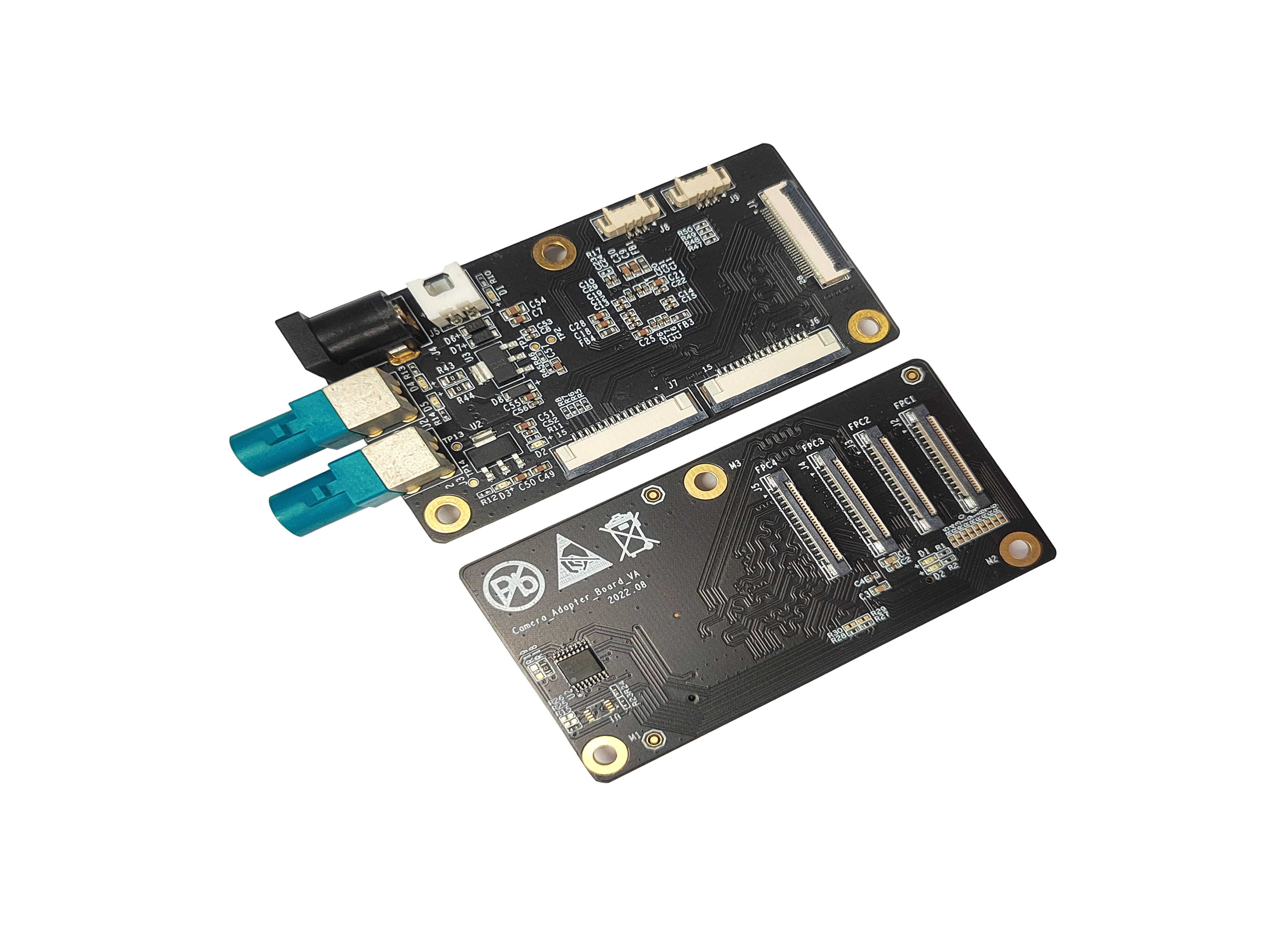

NVIDIA Jetson AGX Orin 摄像头

适配NVDIA Jetson AGX Orin 平台 摄像头模组
