首页 > 嵌入式视觉方案 > NVIDIA Jetson Orin NX/Nano
NVIDIA Jetson Orin NX/Nano 摄像头

森云智能是高质量摄像头模组的领先供应商。作为NVIDIA Elite Jetson合作伙伴,我们支持NVIDIA Jetson平台及其家族成员 Jetson Orin NX/Nano我们提供创新的摄像机解决方案,如高分辨率SerDes摄像机、超微光摄像机、红外摄像机、HDR摄像机以及ADAS摄像机。我们针对NVIDIA Jetson的GMSL2和MIPI CSI-2摄像机应用于自主机器、工业检测、机器人和边缘计算。

我们有能力开发成像解决方案,使用NVIDIA Jetson相机工具链来满足各种相机系统的需求。特别适用于高图像质量、低照度成像和低延迟传输解决方案。该解决方案包括具有各种接口的摄像头,如MIPI、GMSL、FPDLINK、USB等。我们还提供Linux驱动程序和示例应用程序,以实现快速的集成。


适配 Jetson Orin Nano/NX 平台 摄像头模组

Product

Sensor

Resolution

Output

HFOV

Interface

Adaptation kit

Adapter board

SE1-S4-USB-HxxxM

IMX646

1280 x 720

20Mevents/s

66°/110°/130°

USB 3.0

Jetson Orin Nano/NX

/

SE1-S4-USB-HxxxC

IMX646

1280 x 720

20Mevents/s

44°/134°

USB 3.0

Jetson Orin Nano/NX

/

SG2-IMX662C-MIPI-HXXX

IMX662

1920 x 1080

MIPI/RAW12

29°/58°/96°/114°

FPC

Jetson Orin Nano/NX

/

SG2-IMX390C-MIPI-HXXX

IMX390

1920 x 1080

MIPI/RAW12

30°/60°/100°/118°

FPC

Jetson Orin Nano/NX

/

ISX031
1920 x1536
MIPI/YUV
60.35°/100.4°/118.39°/196°FPC

Jetson Orin Nano/NX

/

SG8-IMX678C-MIPI-HXXX

IMX678

3840 x 2160

MIPI/RAW12

57.2°

FPC

Jetson Orin Nano/NX

/

SG12-IMX577C-MIPI-HXXX

    IMX577

4056 x 3040

MIPI/RAW12

30°/61°/93°

FPC

Jetson Orin Nano/NX

/

IMX283

5472× 3648

MIPI/RAW12

15°/30°/57.6°/95°

FPC

Jetson Orin Nano/NX

/

SG2-AR0231C-0202-GMSL-Hxxx

AR0231

1280×1080

YUV422

30°/60°/100°/120°/190°

GMSL

Jetson Orin Nano/NX

SG2A-G2-M4L-F‍‍

SG2-AR0233C-5200-GMSL2-Hxxx

AR0233

1280×1080

YUV422

30°/60°/100°/120°/190°

GMSL2

Jetson Orin Nano/NX

SG2A-G2-M4L-F

SG2-IMX390C-5200-G2A-Hxxx

IMX390

1280×1080

YUV422

30°/60°/100°/120°/190°

GMSL2

Jetson Orin Nano/NX

SG2A-G2-M4L-F‍‍

SG2-OX03CC-5200-GMSL2F-Hxxx

OX03C10

1280×1080

YUV422

30°/60°/100°/120°/190°

GMSL2

Jetson Orin Nano/NX

SG2A-G2-M4L-F‍‍

SG3S-ISX031C-GMSL2F-Hxxx

ISX031

1920×1536

YUV422

30°/60°/90°/120°/190°

GMSL2

Jetson Orin Nano/NX

SG2A-G2-M4L-F‍‍‍

SG5-IMX490C-5300-GMSL2-Hxxx

IMX490

2880×1860

YUV422

30°/60°/90°/120°

GMSL2

Jetson Orin Nano/NX

SG2A-G2-M4L-F‍‍

SG8S-AR0820C-5300-GMSL2-Hxxx

AR0820

3840×2160

YUV422

30°/60°/90°/120°

GMSL2

Jetson Orin Nano/NX

SG2A-G2-M4L-F‍‍

SG8S-AR0820C-5300-GMSL3-H1‍20YA

AR0820

3840×2160

YUV422

30°/60°/90°/120°

GMSL3

Jetson Orin Nano/NX

SG2A-G3-M4L-F

SG8-IMX728C-GMSL3-Hxxx

IMX728

3840 x 2160

RAW12

30°/60°/120°

GMSL3

Jetson Orin Nano/NX

SG2A-G3-M4L-F

SG2-IMX390C-5200-GMSL2-Hxxx

IMX390

1920×1080

YUV422

30°/60°/100°/120°/190°

GMSL2

Jetson Orin Nano/NX

SG6C-ORNX-G2-F

SG3S-ISX031C-GMSL2F-Hxxx

ISX031

1920×1536

YUV422

30°/60°/90°/120°/190°

GMSL2

Jetson Orin Nano/NX

SG6C-ORNX-G2-F‍‍

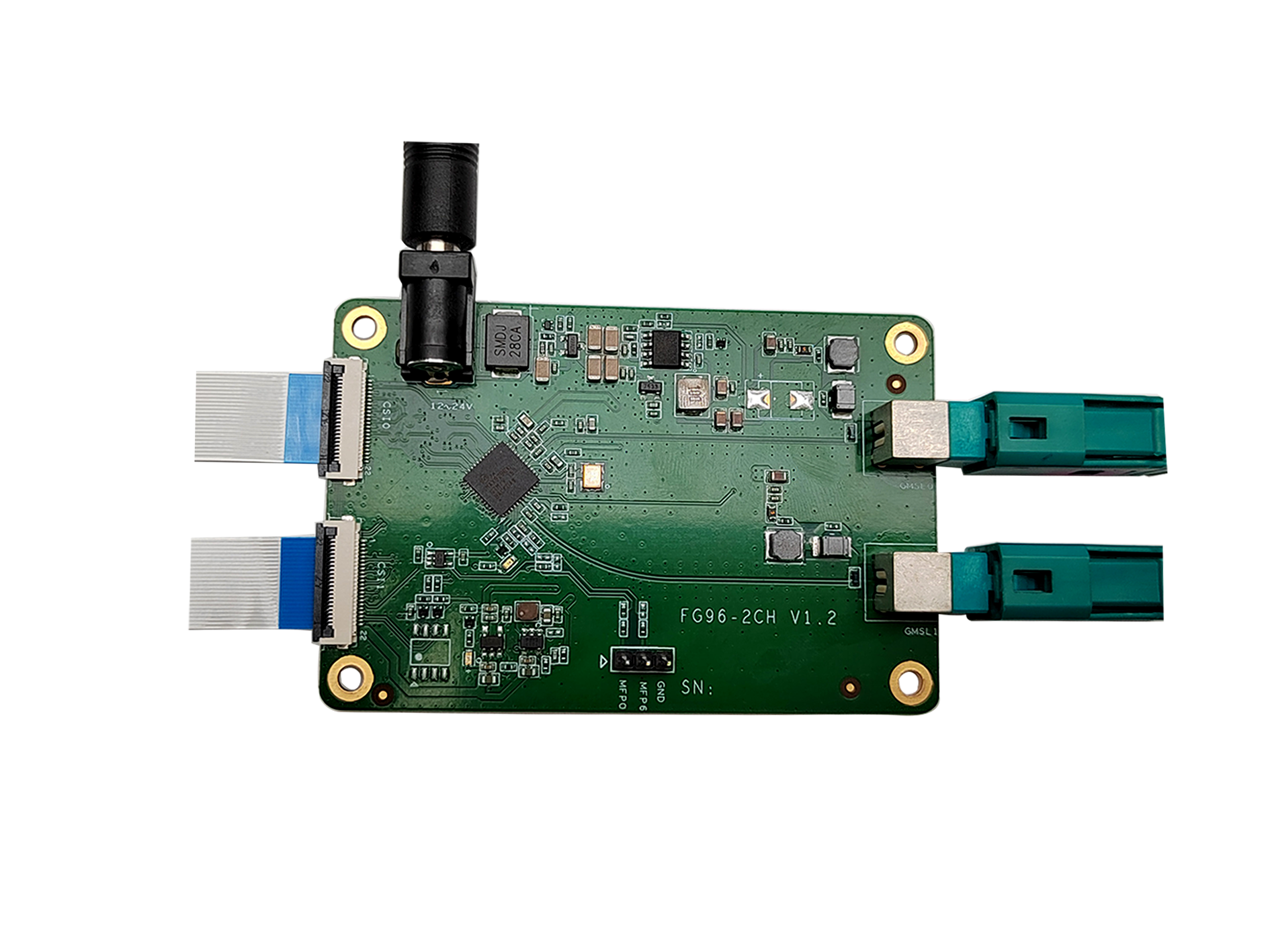

Jetson Orin NX & Nano 开发套件转接板/载板
适用于 Jetson Orin NX/Nano 的摄像头解决方案
